LV-2K PCB Upgrade for WG K6100 Monitor
Item #: LV2K
$25.00
In stock

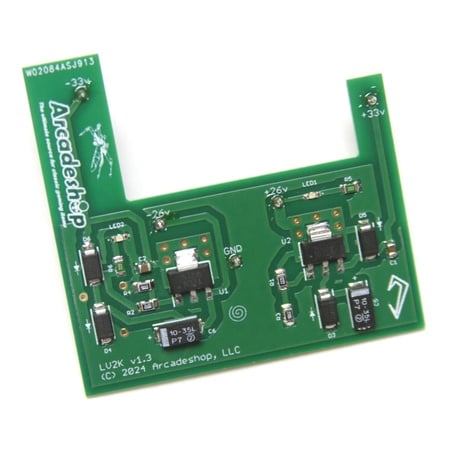

LV-2K (LV2000) v1.3 retrofit kit for the Wells Gardner K6100 series color X/Y vector monitor. This upgrade replaces the deflection board's poorly designed low-voltage power supply circuit. Each board is professionally assembled on an automated line and tested for a voltage range of +/- 26 volts with a +/- 2% tolerance (25.48 - to 26.52 volts) on each output. To install, remove select components, and install the board, no adjustments are needed. Refer to the installation instructions for further details.
Features:
- Simple installation, virtually impossible to make an error. Insert PCB, and solder five pins!
- Status LEDs indicating operation
- Capacitors are rated for 125° Celsius, and regulators are rated for 125° Celsius at 1.5 amps
- Our design uses a set voltage regulator circuit, so you will never have to adjust the output voltages
- The gold-plated mounting pins have spacers so heat can dissipate from the PCB bottom side copper layer
- Unlike other versions sold on the market, their regulators have no heat sinks for heat dissipation. Also, theirs has jumper wires, which are cumbersome and confusing to the installation process
- The LV-2K can replace any of the other units (LV2000, LV2000 Lite, 6100LV or LV6100)
Game list:
- Aztarac (Centuri)
- Black Widow
- Boxing Bugs (Cinematronics)
- Gravitar
- Quantum
- Space Duel
- Star Wars
- Tempest
Or any game using the Wells Gardner K6100 series color X/Y vector monitor.
